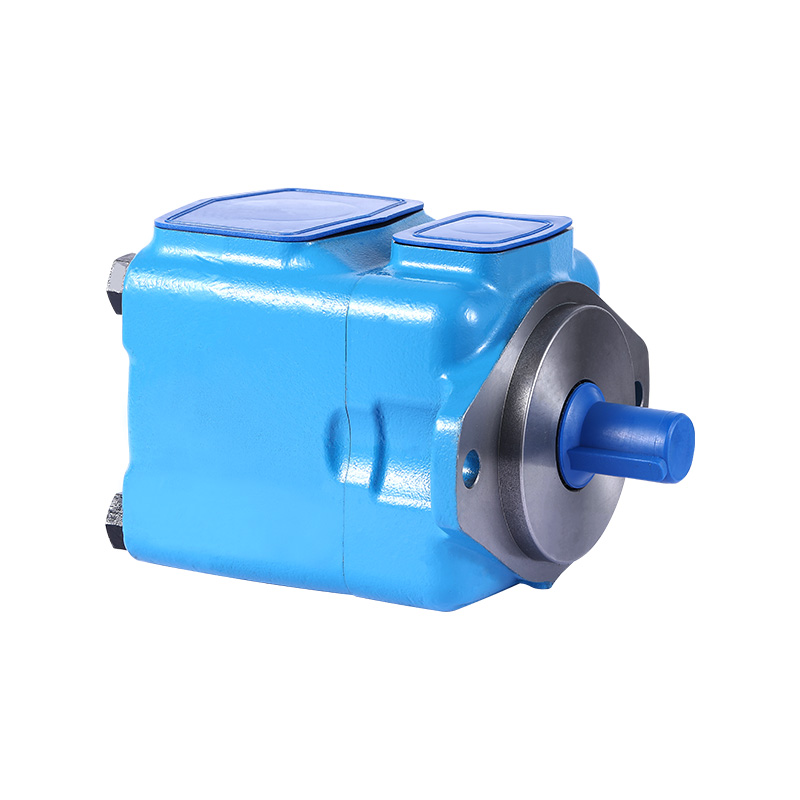

Vickers V Series 45V Hydraulic Pump Vane Pump With Low Noise And High Pressure
Vickers V Series 45V Hydraulic Pump Vane Pump With Low Noise And High Pressure
Vickers V Series 45V Hydraulic Pump Vane Pump With Low Noise And High Pressure
Vickers V Series 45V Hydraulic Pump Vane Pump With Low Noise And High Pressure

Vickers V Series 45V Hydraulic Pump Vane Pump With Low Noise And High Pressure

V series 96-237mL/r 34kg 45V low noise high-pressure hydraulic vane pump is a very popular product of our company.
This product is designed with low noise in mind. We use advanced noise control technology in the design and manufacturing of our pumps. By optimizing the internal construction and material selection of the pump, as well as using shock absorbers and noise reduction measures, we ensured that the pump maintains low noise levels in high-pressure working environments. This provides operators with a more comfortable and quiet working environment, while also reducing disruption to the surrounding environment and personnel.
Our product has high-voltage capabilities. Our design team focuses on the stability and reliability of the pump, ensuring the normal operation of the system while ensuring high-pressure output. The pump can provide stable fluid delivery under high pressure, solving the need for high-pressure hydraulic power in many application scenarios, such as engineering machinery, metallurgical equipment, agricultural machinery, etc.
In addition, the product's lightweight is one of our advantages. The pump weighs only 34kg, making it easy to install and transport. When designing our products, we focus on reducing the weight of the pump while ensuring its structural stability and longevity. This allows users to operate and move the pump more conveniently, improving flexibility and efficiency of use.
Our products also feature multi-purpose applications. Whether in industrial fields or mobile devices, it can meet a wide range of application needs. Whether it's construction machinery dealing with high-pressure power requirements or sound-sensitive equipment requiring low-noise operation, our pumps deliver outstanding performance and reliable pumping service.
V series 96-237mL/r 34kg 45V low noise high-pressure hydraulic vane pump is a product that our company is proud of. Whether it is noise control, high voltage output, lightweight or multifunctional applications, we can provide customers with products and solutions. We look forward to working with you to provide you with reliable and efficient hydraulic vane pump products.
Get A Quote
PREV：2520V Double Pump Hydraulic Vane Pump With Low Noise And High PressureNEXT：V Series 35V Hydraulic Vane Pump With Low Noise And High Pressure
  • Technical Parameters

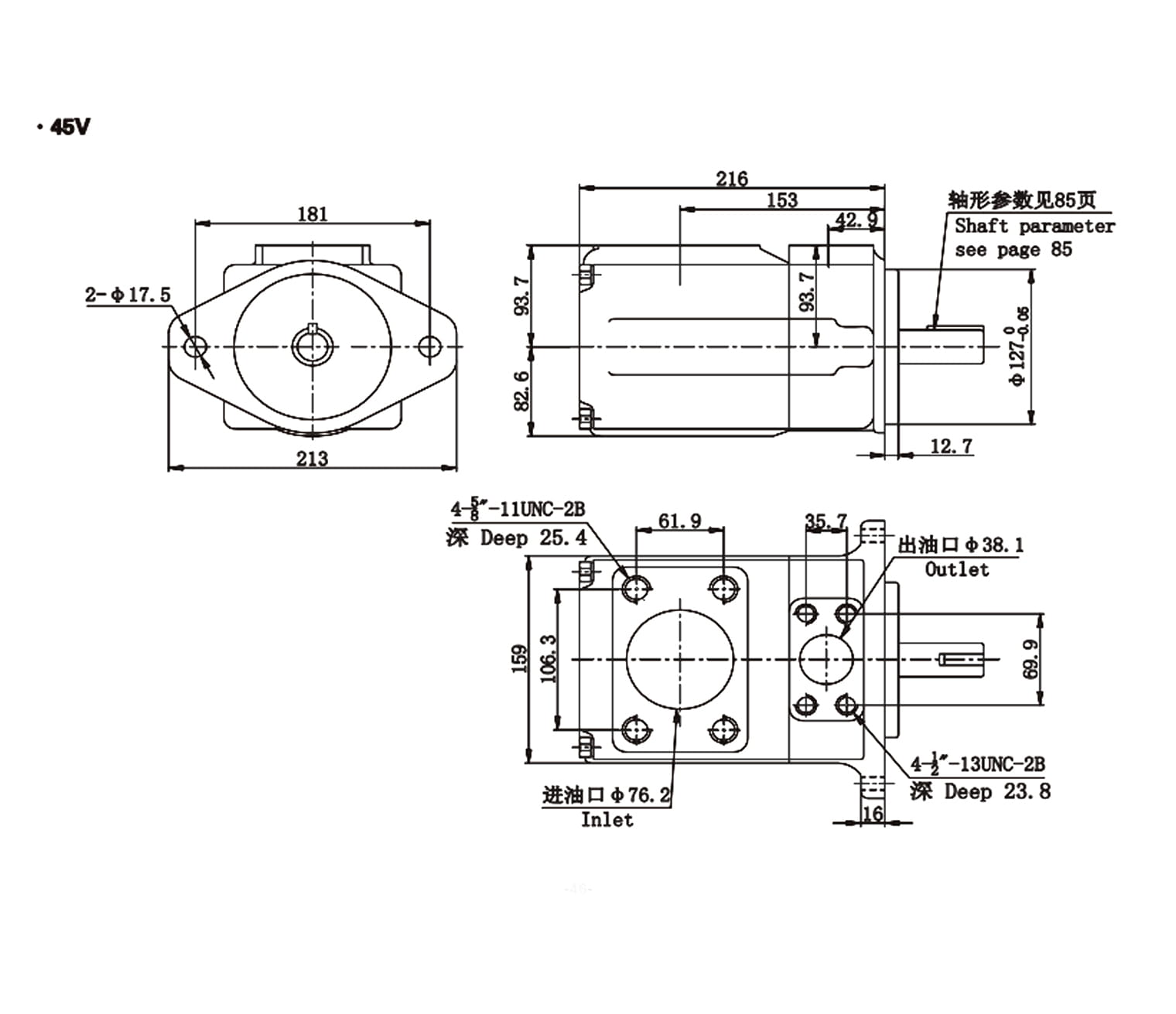

  • Dimensional Drawing

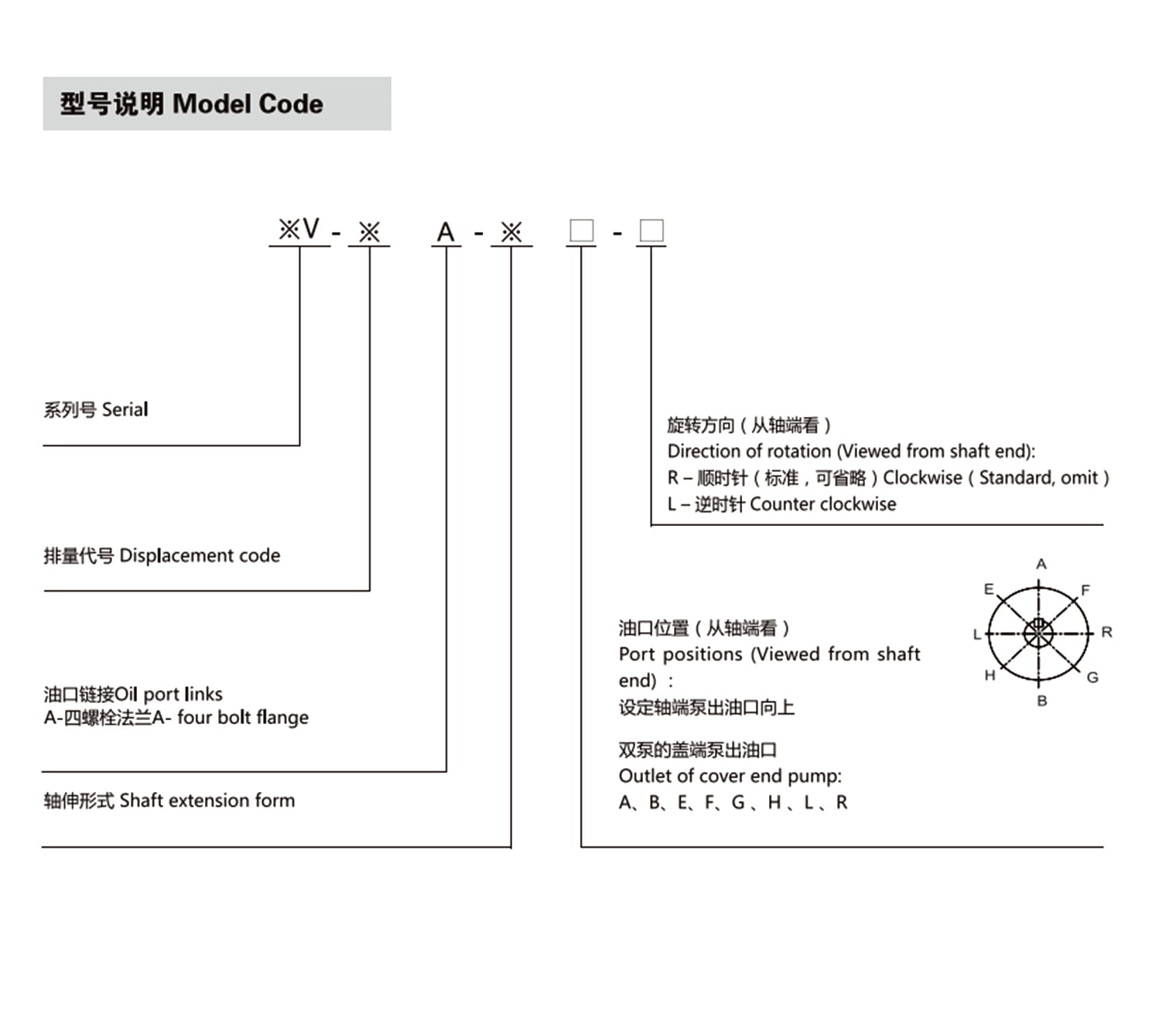

  • Model Description
  • Precautions
  • Contact Us
    • Single Pump
    Subsidiary Series Displacement Code Geometric Displacement
    mL/r    		 Using antiwear oil or Phosphate ester fluid Min.speed
    r/min    		 Weight
    kg
    Max.pressure
    MPa    		 Max.speed
    r/min
    45VQ 30 96 17.5 1800 600 34
    35 109
    38 128
    42 138
    45 142
    50 156
    57 178
    60 189
    66 210
    75 237 14

  • Install and use
    1. During installation, the coaxiality error between the pump shaft and the drive motor shaft should be ≤0.10mm and a flexible coupling should be used. The support structure should be firm, rigid, and able to fully absorb vibration. The pump shaft should be installed horizontally.
    2. When the working speed is lower than 1200r/min, it is recommended to put the suction port of the pump upward during installation so that it is easy to absorb oil when starting.
    3. Match the pipelines according to the size of the oil port, especially the oil inlet pipe, and install a safety relief valve in the system; the oil inlet pipeline must be strictly sealed to prevent air leakage, and the oil return pipe opening should be lower than the liquid level.
    4. Before starting the pump, check whether the inlet and outlet routes and the direction of rotation are correct. When the pump is newly installed or restarted after being stopped for a long time, the air should be released from the oil outlet. When starting, run at low pressure (1.5MPa).
    5. When the pump is installed higher than the oil level of the tank, the oil suction height is ≤500mm. It is best to keep the oil suction port lower than the oil level in the fuel tank. The positive pressure at the suction port should be ≤0.03MPa.
    6. Keep the oil clean, and the pipes and fuel tank must be thoroughly cleaned. Install a filter with sufficient capacity at a position above 50mm from the pump suction inlet to the bottom of the tank. The recommended accuracy is 100μm. A fine filter should be installed in the system, it is recommended to be 25μm and the oil cleanliness level should be within NAS12.
    7. The operating temperature of the oil should be controlled within the range of 15~55°C. The oil should be heated when starting in severe cold and low temperatures. The oil pump should be inched several times without load before running continuously without load.
    8. Pay attention to the viscosity and quality of the oil. It is recommended to use 32 anti-wear hydraulic oil when the ambient temperature is low.
    9. If you need to change the direction of the oil port, first remove the relevant pump body screws, be careful not to separate the left and right pump bodies, ensure that the heart piece rotates at a certain angle with the oil inlet, and then gradually tighten diagonally.
    10. After the entire pump is installed, rotate the pump shaft by hand. It should be even and flexible.
