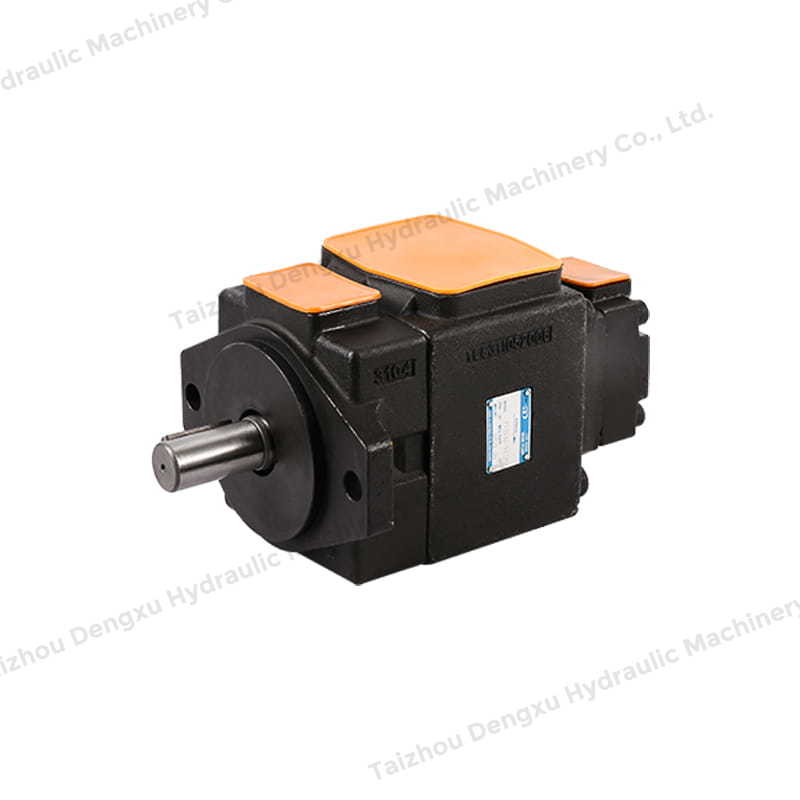

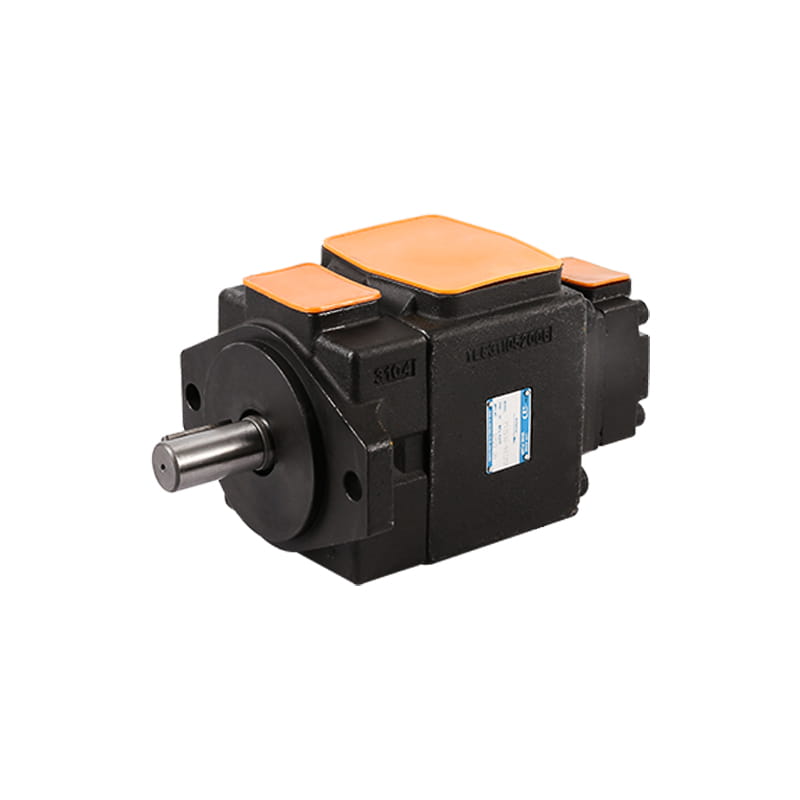

PV2R31 Double Pump Hydraulic Power Vane Pump With Low Noise And High Pressure
PV2R31 Double Pump Hydraulic Power Vane Pump With Low Noise And High Pressure
PV2R31 Double Pump Hydraulic Power Vane Pump With Low Noise And High Pressure
PV2R31 Double Pump Hydraulic Power Vane Pump With Low Noise And High Pressure

PV2R31 Double Pump Hydraulic Power Vane Pump With Low Noise And High Pressure

PV2R31 52-136mL/r displacement low noise high-pressure double pump hydraulic vane pump is an hydraulic pump known for its performance and wide range of applications.
PV2R31 double pump adopts advanced noise control technology and is committed to providing a low noise level working environment. Whether operating under high pressure or high speed, the noise level of the pump can be kept within a low range, providing operators with a more comfortable and quiet working environment.
The pump's dual-pump design enables it to provide high-pressure output, making it suitable for a variety of applications requiring high-pressure hydraulic power. Whether in the industrial field or mobile equipment, the PV2R31 pump can stably provide the required high-pressure capability to ensure the normal operation of the system.
PV2R31 pumps are suitable for a wide range of applications. Whether in construction machinery, metallurgical equipment, agricultural machinery, or marine equipment, this pump can exert its performance. It can be used as the power source of hydraulic systems, lifting devices of work tables, hydraulic transmission systems, and a variety of applications requiring high-pressure hydraulic power.
PV2R31 pumps are known for their high-quality construction and precision manufacturing processes, ensuring their reliability and long-term stable operation. It adopts durable materials and design, can maintain efficient and stable operation in harsh working environments, and has pressure resistance.
The PV2R31 uses advanced pump design and fluid dynamics to ensure efficient hydraulic conversion. Its high-efficiency work can improve the efficiency of the system and reduce energy consumption. This is a very attractive feature for those users who pay attention to energy conservation and environmental protection.
PV2R31 52-136mL/r displacement low noise high-pressure double pump hydraulic vane pump stands out for its high quality, low noise, high pressure, and versatile applications. No matter the field or application, this pump provides users with performance and stable operation.
Get A Quote
PREV：PV2R High Precision Low Noise High Pressure Vane Pump Cartridge Kits For Industrial EquipmentNEXT：PV2R21 High Pressure Control Pump Double Hydraulic Vane Pump With Low Noise
  • Technical Parameters
    Note:
    1. When the nominal displacement "4", "6", and "8" pumps are used with a pressure exceeding 16MPa, the rotation speed should exceed 1450r/min.
    2. When using a large-displacement single pump and corresponding double pumps at high speeds, the suction inlet negative pressure should be reduced.
    3. When using synthetic hydraulic oil and aqueous hydraulic fluid, the maximum speed is limited to 1200r/min.
    4. For occasions where low noise is particularly required, it is recommended that the working speed be 1000r/min.
    5. The driving power is under the working conditions of P=16MPa and n=1500r/min.
    • Double Pumps
    Series Displacement of shaft end pump Displacement of cover end pump
    PV2R31 52、60、66、76、94、116、125、136 4、6、8、10、12、14、17、19、23、25、28、31

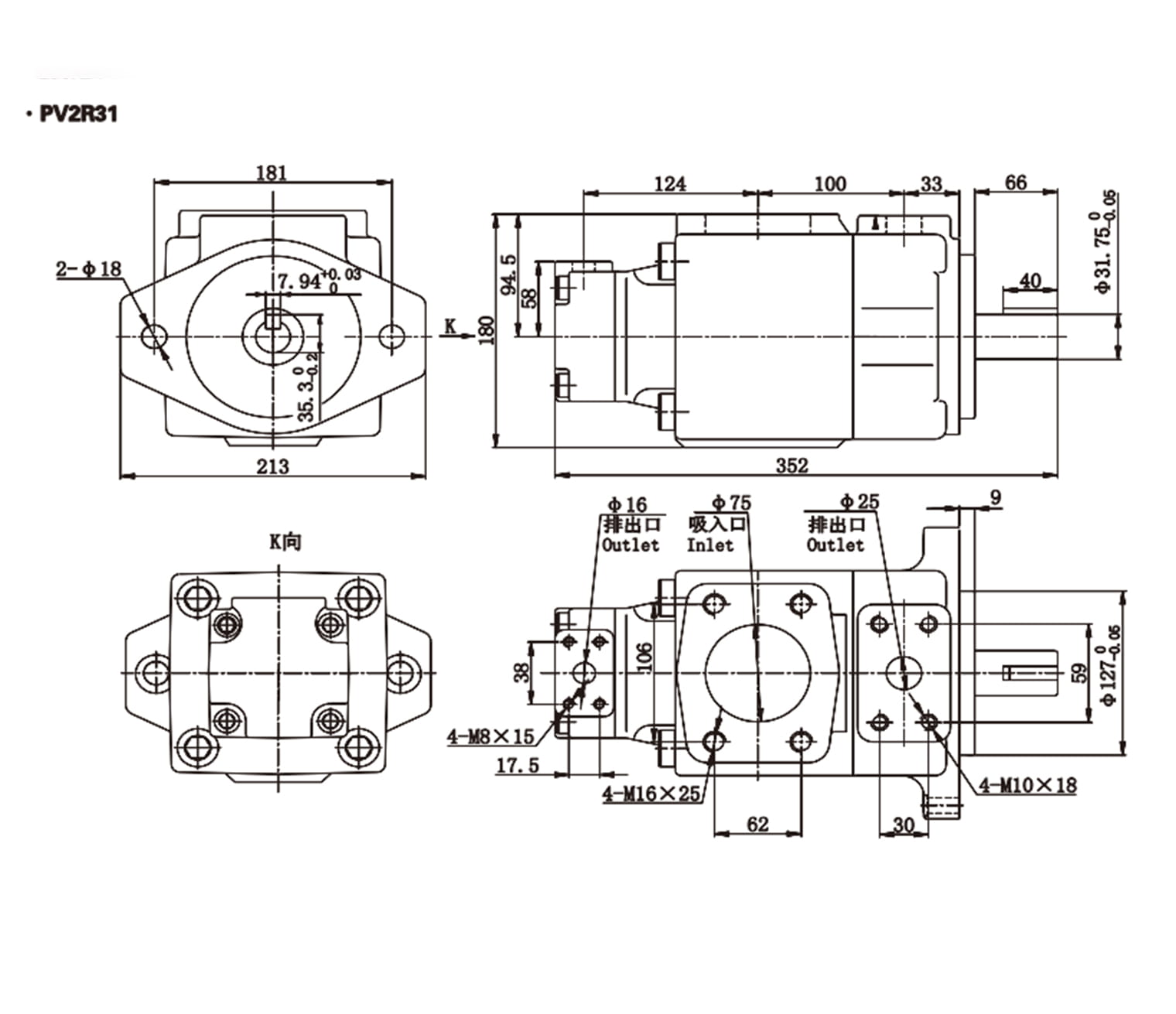

  • Detailed description

  • Model Description

  • Precautions
    Install and use
    1. During installation, the coaxiality error between the pump shaft and the drive motor shaft should be ≤0.10mm, and a flexible coupling should be used. The support structure should be firm, rigid, and able to fully absorb vibration. The pump shaft should be installed horizontally.
    2. Match the pipelines according to the size of the oil port, especially the oil inlet pipe, and install a safety relief valve in the system; the oil inlet pipeline must be strictly sealed to prevent air leakage, and the oil return pipe opening should be lower than the liquid level.
    3. Before starting the pump, check whether the inlet and outlet routes and the direction of rotation are correct. When the pump is newly installed or restarted after being stopped for a long time, the air should be released from the oil outlet. When starting, run at low pressure (1.5MPa).
    4. When the pump is installed higher than the oil level of the tank, the oil suction height is ≤500mm. It is best to keep the oil suction port lower than the oil level in the fuel tank. The positive pressure at the suction port should be ≤0.03MPa.
    5. Keep the oil clean, and the pipes and fuel tank must be thoroughly cleaned. Install a filter with sufficient capacity at a position above 50mm from the pump suction inlet to the bottom of the tank. The recommended accuracy is 100μm. A fine filter should be installed in the system, it is recommended to be 25μm and the oil cleanliness level should be within NAS12.
    6. The operating temperature of the oil should be controlled within the range of 15~55°C. When starting in severe cold and low temperatures, the oil should be heated, and the oil pump should be inched several times without load before running continuously without load.
    7. Pay attention to the viscosity and quality of the oil. It is recommended to use 32 anti-wear hydraulic oil when the ambient temperature is low.
    8. If you need to change the direction of the oil port, first remove the relevant pump body screws, be careful not to separate the left and right pump bodies, ensure that the heart piece rotates at a certain angle with the oil inlet, and then gradually tighten diagonally.
    9. After the entire pump is installed, rotate the pump shaft by hand. It should be even and flexible.

  • The PV2R series hydraulic vane pump is a high-performance solution designed for industrial systems requiring stable pressure, low noise, and long service life. Manufactured with high-precision machining and advanced vane materials, the PV2R pump delivers excellent volumetric efficiency and consistent output flow even under continuous high-pressure operation.

    This pump is widely used in hydraulic stations, CNC machine tools, injection molding machines, forging equipment, and other industrial applications where reliable pressure control is essential. Its compact structure allows easy installation in limited spaces, making it suitable for both new system designs and equipment upgrades.

    The PV2R vane pump adopts an optimized internal oil distribution plate and balanced design, significantly reducing flow ripple and noise levels compared with conventional vane pumps. This improves machine performance and helps manufacturers meet increasingly strict noise-control requirements. The hardened vanes and precision-ground cam ring ensure long-term durability, stable operation, and reduced maintenance frequency.

    The series is available in multiple displacements and configurations, including PV2R12, PV2R23, PV2R33, and others, allowing users to select the ideal model according to pressure, flow rate, and installation needs. Each pump is thoroughly tested before delivery to ensure stable performance in demanding industrial environments.

    For OEM projects, customized configurations and branded labeling are available. Whether you are upgrading existing hydraulic equipment or designing a new system, the PV2R series provides a dependable and cost-effective solution with proven performance in global markets.

  • FAQ

    Q1: What is the maximum working pressure of the PV2R series vane pump?

    A1: The PV2R hydraulic vane pump is designed for high-pressure applications, with a maximum working pressure up to 210 bar, depending on the model and displacement. It maintains stable output flow under continuous operation.

    Q2: What are the main advantages of PV2R pumps compared to other vane pumps?

    A2: The PV2R series offers low noise, high volumetric efficiency, long service life, stable pressure control, and a compact design. These features make it suitable for CNC machines, hydraulic stations, injection molding, and industrial automation systems.

    Q3: Which models are available in the PV2R series?

    A3: Common models include PV2R12, PV2R23, PV2R33, and other displacement options. Each model supports different flow rates and installation sizes to match various hydraulic system requirements.

    Q4: Do you offer OEM customization for the PV2R vane pump?

    A4: Yes. We provide OEM & ODM services, including customized specifications, flow rates, mounting options, and branding. Technical drawings or samples can also be produced according to customer requirements.

    Q5: What hydraulic fluids are recommended for PV2R pumps?

    A5: The pump is compatible with standard anti-wear hydraulic oils, including ISO VG32–VG68 grades. For best performance and long service life, clean and properly filtered oil is recommended.

    Q6: What is the typical delivery time for PV2R vane pumps?

    A6: Standard models are usually available for delivery within 3–7 working days. Customized or large-quantity orders may require additional lead time depending on production schedule.
