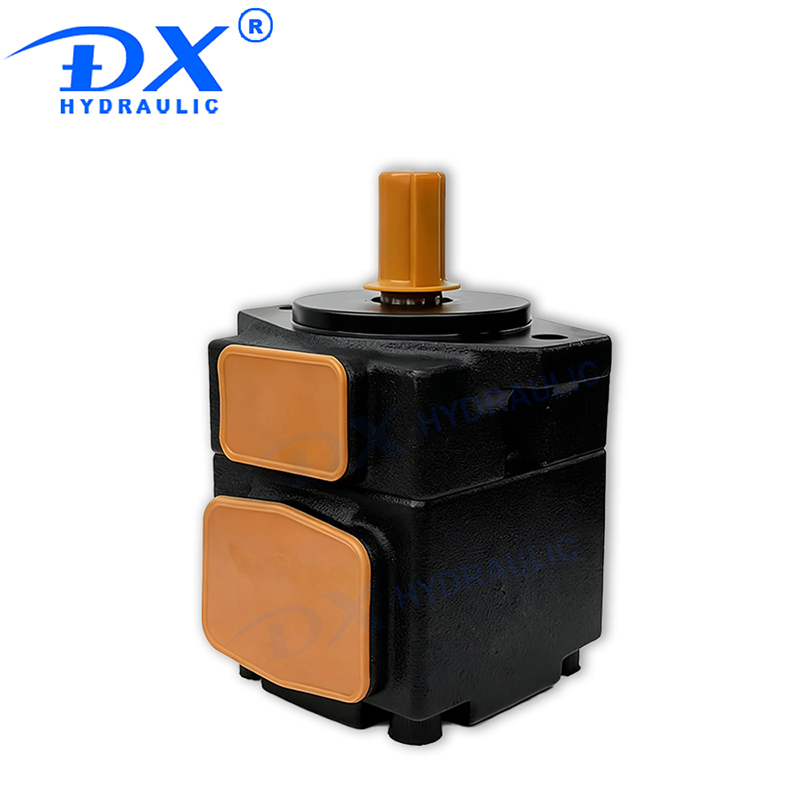

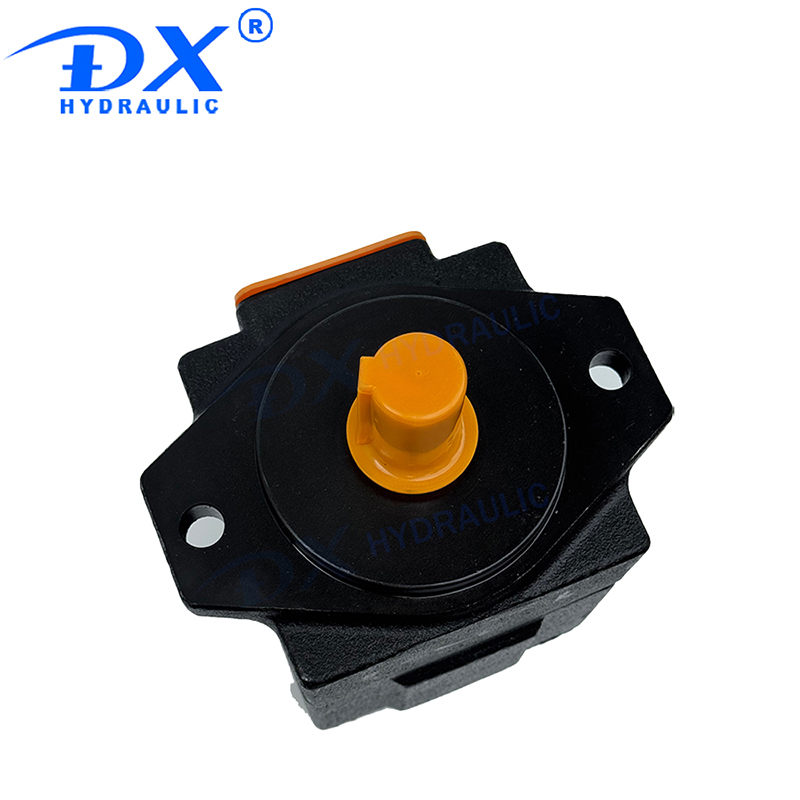

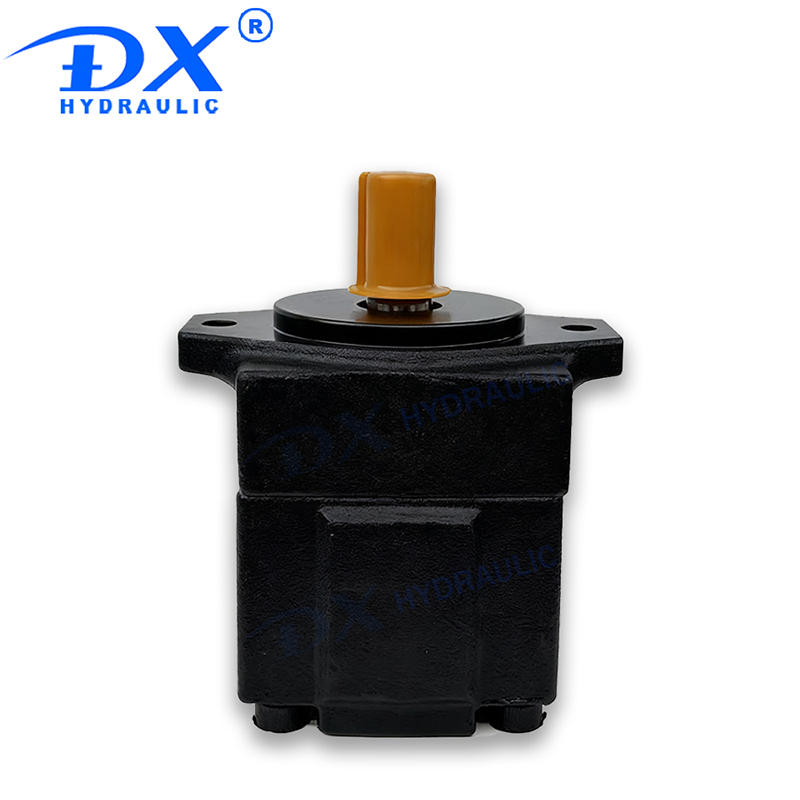

PV2R Series High-Pressure Low-Noise Vane Pump

The PV2R series hydraulic vane pump is a high-performance solution designed for industrial systems requiring stable pressure, low noise, and long service life. Manufactured with high-precision machining and advanced vane materials, the PV2R pump delivers excellent volumetric efficiency and consistent output flow even under continuous high-pressure operation.

This pump is widely used in hydraulic stations, CNC machine tools, injection molding machines, forging equipment, and other industrial applications where reliable pressure control is essential. Its compact structure allows easy installation in limited spaces, making it suitable for both new system designs and equipment upgrades.

The PV2R vane pump adopts an optimized internal oil distribution plate and balanced design, significantly reducing flow ripple and noise levels compared with conventional vane pumps. This improves machine performance and helps manufacturers meet increasingly strict noise-control requirements. The hardened vanes and precision-ground cam ring ensure long-term durability, stable operation, and reduced maintenance frequency.

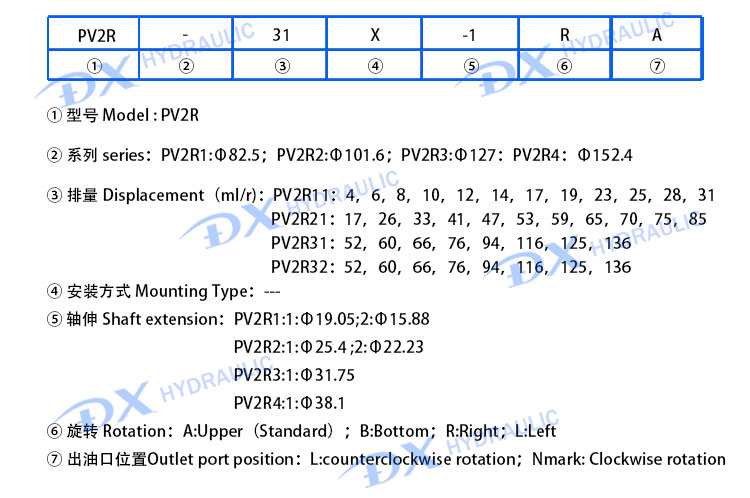

The series is available in multiple displacements and configurations, including PV2R12, PV2R23, PV2R33, and others, allowing users to select the ideal model according to pressure, flow rate, and installation needs. Each pump is thoroughly tested before delivery to ensure stable performance in demanding industrial environments.

For OEM projects, customized configurations and branded labeling are available. Whether you are upgrading existing hydraulic equipment or designing a new system, the PV2R series provides a dependable and cost-effective solution with proven performance in global markets.

Q1: What is the maximum working pressure of the PV2R series vane pump?

A1: The PV2R hydraulic vane pump is designed for high-pressure applications, with a maximum working pressure up to 210 bar, depending on the model and displacement. It maintains stable output flow under continuous operation.

Q2: What are the main advantages of PV2R pumps compared to other vane pumps?

A2: The PV2R series offers low noise, high volumetric efficiency, long service life, stable pressure control, and a compact design. These features make it suitable for CNC machines, hydraulic stations, injection molding, and industrial automation systems.

Q3: Which models are available in the PV2R series?

A3: Common models include PV2R12, PV2R23, PV2R33, and other displacement options. Each model supports different flow rates and installation sizes to match various hydraulic system requirements.

Q4: Do you offer OEM customization for the PV2R vane pump?

A4: Yes. We provide OEM & ODM services, including customized specifications, flow rates, mounting options, and branding. Technical drawings or samples can also be produced according to customer requirements.

Q5: What hydraulic fluids are recommended for PV2R pumps?

A5: The pump is compatible with standard anti-wear hydraulic oils, including ISO VG32–VG68 grades. For best performance and long service life, clean and properly filtered oil is recommended.

Q6: What is the typical delivery time for PV2R vane pumps?

A6: Standard models are usually available for delivery within 3–7 working days. Customized or large-quantity orders may require additional lead time depending on production schedule.
