Features:

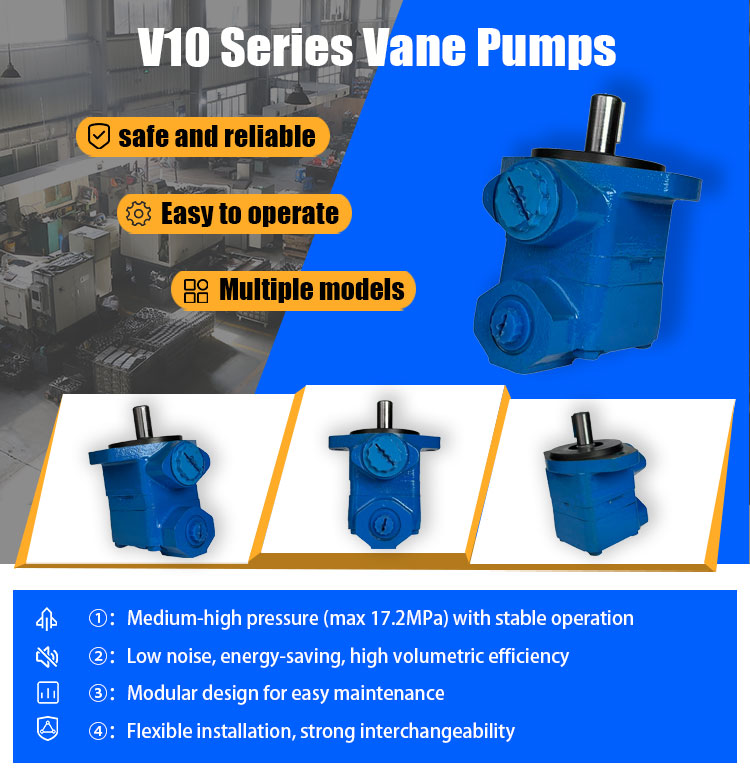

V10 Series Vane Pumps
①: Medium-high pressure (max 17.2MPa) with stable operation
②: Low noise, energy-saving, high volumetric efficiency
③: Modular design for easy maintenance
④: Flexible installation, strong interchangeability

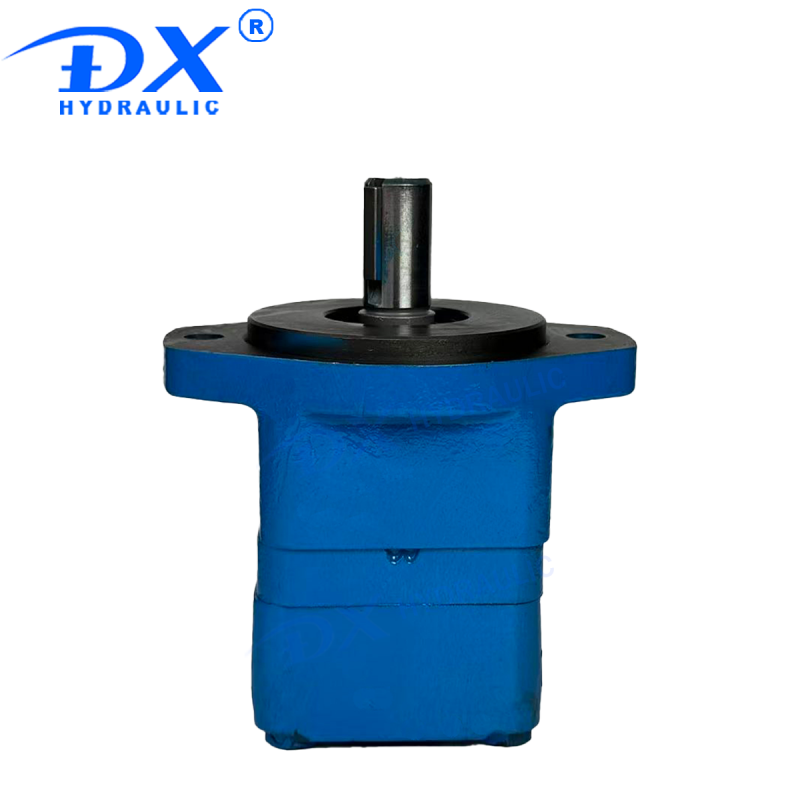

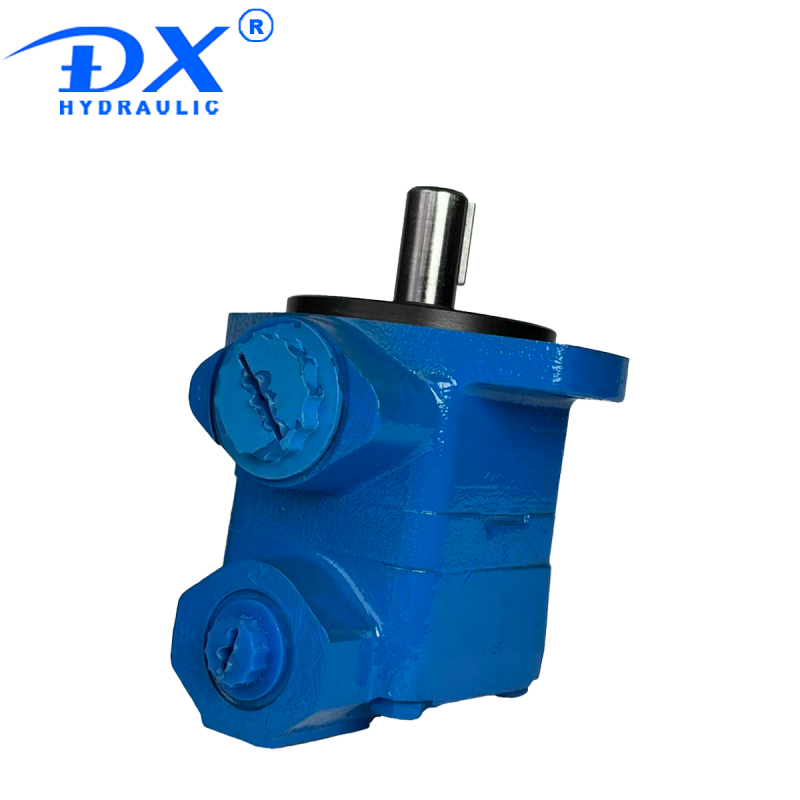

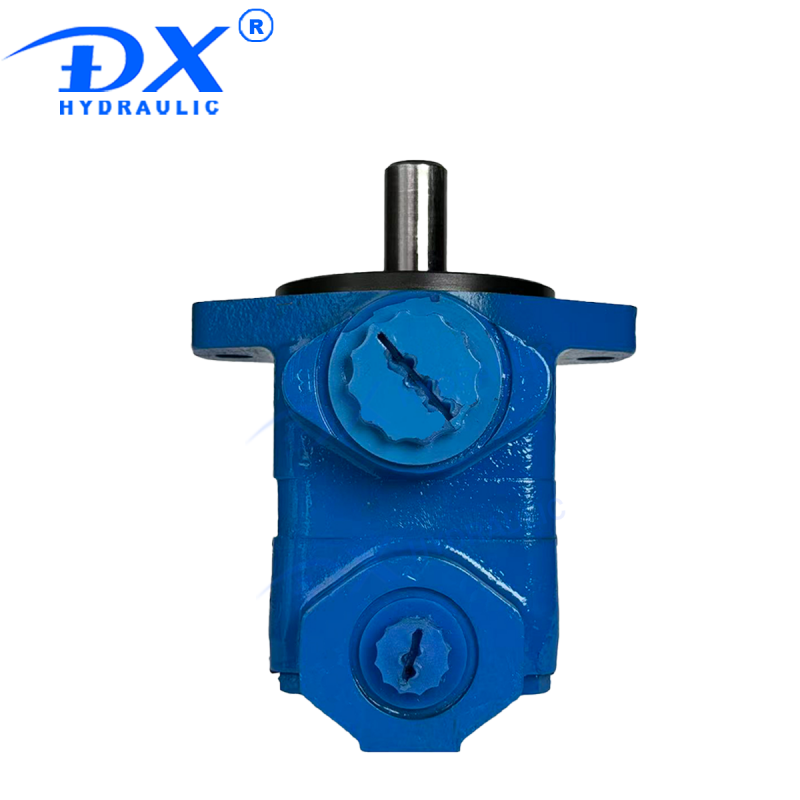

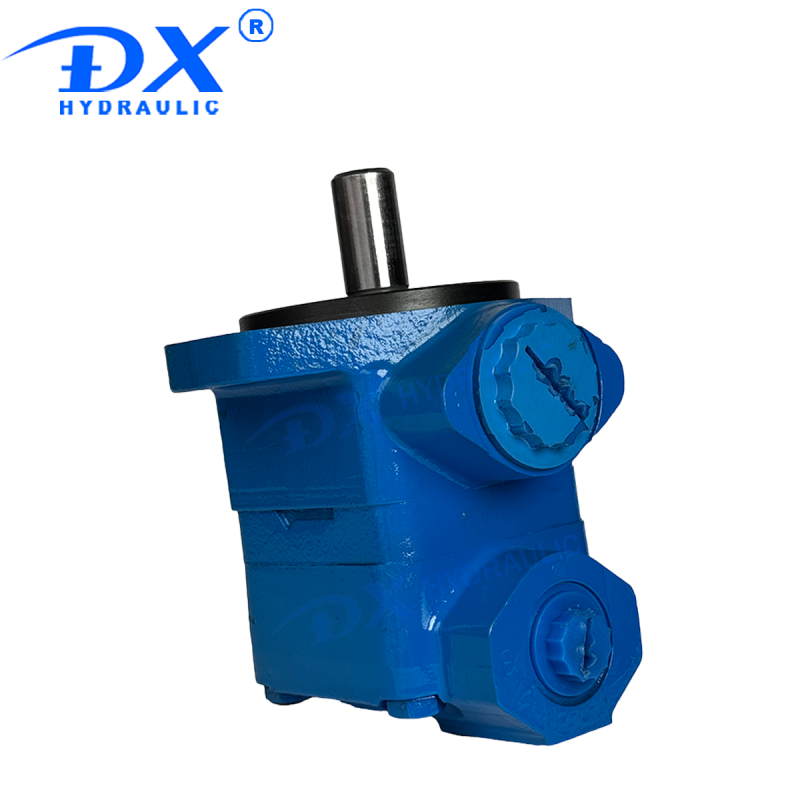

The V10 vane pump features a cast iron main body, with high-strength alloys used for the rotor, stator, and vanes to extend service life.
The V10 Series vane pumps are designed for medium to high pressure hydraulic systems, with a maximum working pressure of up to 17.2 MPa. The optimized vane and rotor structure ensures smooth flow output and stable pressure performance, even under continuous or fluctuating load conditions. This stability helps improve overall system reliability and protects downstream hydraulic components from pressure shocks and flow pulsation.
The V10 Series features standardized mounting dimensions and port configurations, allowing for flexible installation in various hydraulic system layouts. Its strong interchangeability enables easy replacement with similar models from other series or brands without major system modifications. This design advantage simplifies equipment upgrades, reduces downtime, and lowers inventory and maintenance costs for users.
Precision machining and optimized internal sealing structures give the V10 Series vane pumps high volumetric efficiency. Reduced internal leakage allows more hydraulic fluid to be effectively converted into usable flow output, improving energy utilization and reducing heat generation. High volumetric efficiency not only enhances system performance but also contributes to lower power consumption and extended service life of both the pump and the overall hydraulic system.
Application
The V10 vane pump is mainly applied in machine tools, industrial machinery, small construction machinery, automation/agricultural/marine equipment, and hydraulic test benches.
